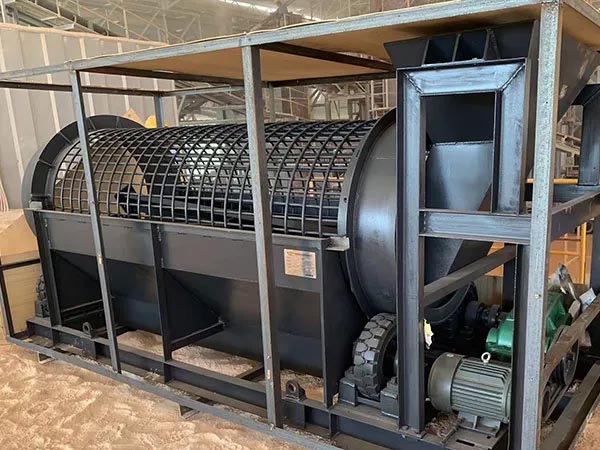

Trommel Screen

Trommel screen machine is also called rotary drum screen. It provides a simple, efficient and economical solution to sceen a wide rang of material. Trommel screen is applied in metallurgy, mining, chemical, coal, building materials and other industries.

≤1200mmFeed Size
5.5-280KWMotor Power
0.5-350tphProcessing Capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:dingli@dlbio-dryer.com

What is trommel screen?

Trommel screen is a kind of machinery widely used in the sorting industry, and it screens materials by the different particles size. The barrel of the trommel screen can be divided into several sections with different screen hole sizes. The screen holes are arranged from small to large, and the screen hole diameters on each section are the same. Thus the screening accuracy is high. Drum screening equipment is mainly used for large and small stone classification, soil and stone powder separation, sand and stone separation, lump coal and coal powder separation, coal washing, large and small block classification, powder material separation, etc.

Why choose trommel screen?

1. Trommel screen adopts the overall through-shaft structure, which runs smoothly, does not vibrate, and has low noise.

2. The trommel screen has simple structural design, good screening effect, and the screen hole is not easy to block.

3. The screening cylinder can be closed, which is easy to seal and collect dust.

4. Baichy can manufacture trommel screens with shaft, shaftless, mobile, integrated screening and conveying, etc. At the same time, different screen materials and screen hole sizes can be used according to requirements.

Get Price List

High Quality

Screen long life span. Screen seive is made with strong strength, good abrasion resistance and high screening efficiency.
Customized Design

Designed to fit your operation.Trommel screen can be customized to meet different capacity and working site.
Good Performance

Free from pollution.Fully enclosed structure,no dust pollution,improve working conditions for operators as well.

Product features

Variable application range. Compost,chemical,coal,plastic,recycling,metallurgy,mineral screening etc.

Working principle

Trommel screen is consisting of five parts: drum, frame, hopper, reducer and motor.

After the material goes into the drum, it is screened along with the rotation of drum. At same time, the larger size materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes. The different materials fall into different hoppers and then are sent to different finished product stacks by manpower or belt conveyor.

Specification

Model	Screen Diameter(mm)	Screen Length(mm)	Mesh size(mm)	Max feeding size(mm)	Capacity(t/h)	Power(kw)
GTS0618	600	1800	2-80	<300	0.5-2	1.1
GTS0824	800	2400	2-80	<300	2-20	2.2
GTS1030	1000	3000	2-80	<300	20-100	4
GTS1236	1200	3600	2-80	<300	30-120	7.5
GTS1545	1500	4500	2-80	<300	60-280	11
GTS1860	1800	6000	2-80	<300	80-350	22
