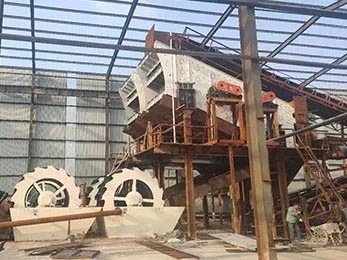

The Sand washing machine is used to wash stone powder and residual away from the sand. It is widely used in sand washing plant.
The sand washing machine is indispensable equipment for sand, gravel, aggregate washing plant and widely used in the aggregate, mines, building materials, construction, concrete and other industries.
Sand washer can remove the impurities covering the surface of the sand and stone to improve the sand and gravel product quality.
It has almost no wearing parts except the screen mesh, long service life.
Convenient maintenance, large processing capacity, low power consumption, high cleanliness.
Reasonable design, new-type seal structure and totally-enclosed oil bath type transmission device.
The screen is composed of thick steel plate and the mesh is punched.
High capacity, low power consumption.
Water-saving, no pollution and long life span.
When XSD sand washing machine begin running, the impeller rotates slowly drived by motor and reducer, sand and gravel from the feed chute into the wash tank cleaning, rotation of the impeller take the water and sand away through the sieve filter out the clean sand. Finally, gravel from the rotating impeller into discharge chute and completion of gravel cleaning effect.
| Model | Impeller Dia.(mm) | Feeding Size(mm) | Capacity(t/h) | Motor Power(kw) |
| XSD2300 | Φ2300 | ≤ 10 | 20-30 | 4 |
| XSD2610 | Φ2600 | 30-80 | 7.5 | |
| XSD2915 | Φ2900 | 60-120 | 11 | |
| XSD3016 | Φ3000 | 80-160 | 15 | |
| XSD3218 | Φ3200 | 130-220 | 22 | |
| XSD3420 | Φ3400 | 160-300 | 22-30 |
*The output will vary according to different materials, feed particle size and other factors
