Vibrating feeder is used to feed block and granular materials uniformly, regularly and continuously from the storage bin in to stone crushers. Also it could separate the raw materials primarily by grate plate.
1. Vibrating feeders have steel plate structure and grate structure. The vibrating feeder with steel plate structure feeds all materials evenly into the crushing machine. It is mostly used in sand and gravel production plant.
2. Grate type vibrating feeder has a grading function and adjustable gap on the feeding surface near the discharge end, so it can separate the soil and fine-grained materials while feeding. This will improve primary crusher’s crushing efficiency.
3. Small vibrating feeder is used to uniformly, continuously or quantitatively feed blocky, granular and powdery materials from the storage bin or other storage equipment to the receiving equipment. It is suitable for automatic batching, quantitative packaging and automatic control.
4. The vibrating feeder produced by Baichy Machinery has features of stable vibration, reliable operation, low noise, low energy consumption, convenient equipment adjustment and installation. It can adopt a closed structure body to prevent dust pollution.
Stable amplitude, reliable operation, and strong adaptability to a variety of materials.
Special grid design can prevent material blockage and adjustable grid gap.
Use inertial vibrator as the vibration source, and there are no moving part and few wearing parts.
Have low noise and can help to improve working environment.
Vibrating feeder is made of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator consists two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. By drive of the motor, the two eccentric shafts start rotating to generate a linear huge power which forces the feeder to vibrate back and forth. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller material will fall down, avoiding the further crushing, so screening purpose is reached.
| Model | Trough size(mm) |
Max feed size(mm) |
Capacity (t/h) |
Motor Power (kw) |
| ZSW-650*2500 | 650*2500 | 560 | 50-80 | 5.5 |
| ZSW-850*3000 | 850*3000 | 780 | 80-120 | 7.5 |

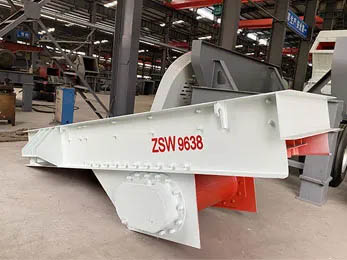

| ZSW-960*3800 | 950*3800 | 820 | 120-210 | 11 |
| ZSW-1100*4200 | 1100*4200 | 1000 | 200-430 | 15 |
| ZSW-1100*4900 | 1100*4900 | 1000 | 280-500 | 15 |
| ZSW-1300*4900 | 1300*4900 | 1100 | 450-600 | 22 |
| ZSW-1500*6000 | 1500*6000 | 1280 | 550-1200 | 30 |
| ZSW-1800*6000 | 1800*6000 | 1350 | 600-1200 | 37 |
*The output will vary according to different materials, feed particle size and other factors
