Sand Dryer is widely used for drying sand, river sand, slag, yellow sand, quartz sand, silica sand, artificial sand, mineral sand, etc.
1. High thermal efficiency: The thermal efficiency is 80% to 90%. The new internal structure strengthens heat conduction of dispersed materials, and eliminates the sticking phenomenon of the inner wall of the cylinder.
2. Stable drying quality: Since the heating mode is easy to control, the temperature inside the cylinder and the heat transfer rate of the partition wall can be kept relatively stable.
3. Long parts life, not easy to wear: The cylinder of the dryer is made of steel material, which has the characteristics of high hardness and high toughness.
The cylinder runs smoothly and reliably, the cylinder is made of steel material, which has the characteristics of high hardness and high toughness.
The new type of lifting plate device: the material is completely uniform in the radial section of the dryer, making full use of heat energy. The base is made of cast steel, and the rolling ring fits well, and the rotation is stable.
Users can easily control the operating status and parameter settings of the equipment through a simple operation interface, reducing manual intervention and operating difficulty.
It can efficiently remove moisture from materials and improve the drying efficiency of materials. It speeds up the production process.

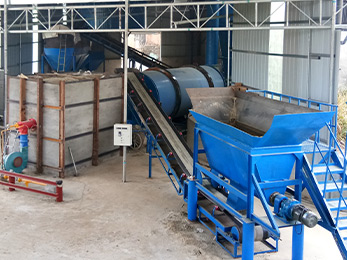

Wet sand enters the dryer through the feeding device and moves forward continuously in the drum through the push of spiral blades. At the same time, high-temperature hot air enters the drum from one end and fully contacts the sand. It fully exchanges with the hot gas in the main engine. Under the action of the lifting plate inside the dryer, the sand can increase the exchange area between the material and the hot gas. With the rotation of the drum and the tumbling of the sand, the moisture in the sand is evaporated and discharged out of the drum with the hot air. The dried sand is discharged from the other end of the drum.
| Model (m) | Capacity (T/H) | Coal consumption kg/t | Total power | ||
| Φ2.0×5 | 12-15 | 10-12 | 4kw×2 | ||
| Φ2.2×5 | 14-18 | 10-12 | 5.5kw×2 | ||
| Φ2.5×5 | 23-28 | 10-12 | 5.5kw×4 | ||
| Φ2.8×6 | 30-35 | 10-12 | 5.5kw×4 | ||
| Φ3.0×6 | 35-40 | 8-10 | 7.5kw×4 | ||
| Φ3.0×7 | 40-45 | 8-10 | 7.5kw×4 | ||
| Φ3.2×7 | 45-50 | 8-10 | 11kw×4 | ||
| Φ3.2×8 | 50-55 | 8-10 | 11kw×4 | ||
| Φ3.6×8 | 60-70 | 6-8 | 15kw×4 | ||
| Φ3.8×9 | 70-80 | 6-8 | 15kw×4 | ||
| Φ4.0×10 | 90-100 | 6-8 | 18.5kw×4 | ||
| Φ4.2×8.5 | 80-100 | 6-8 | 18.5kw×4 | ||
| （The output is set according to moisture : dry from 15% to 1-3%） | |||||
*The output will vary according to different materials, feed particle size and other factors
